Boiler Fuel Type : Multi fuel type system
cng
lpg

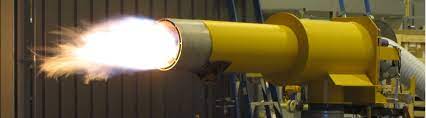

rugged and fuel-efficient burner designs. Enables quick steam and pressure generation with reduced fuel consumption.

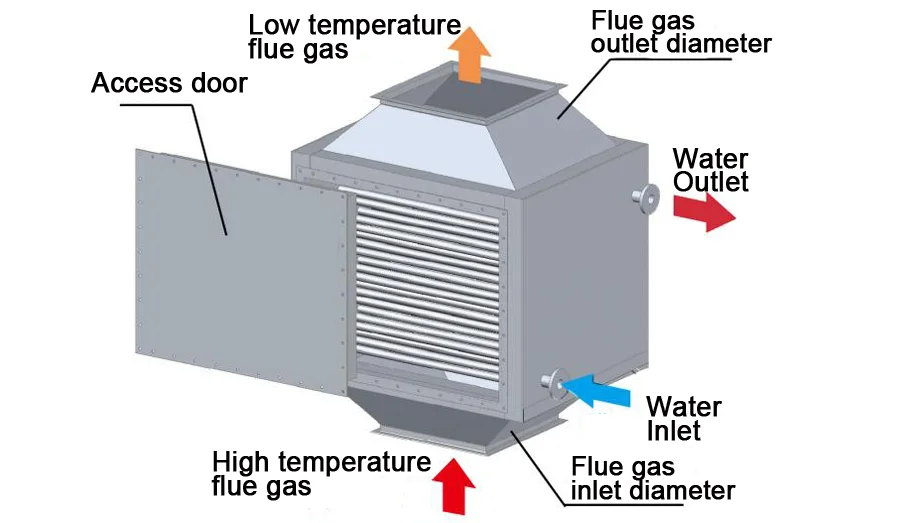

Utilizes waste flue gases to preheat feed water through an economizer. Results in significant savings on fuel costs.

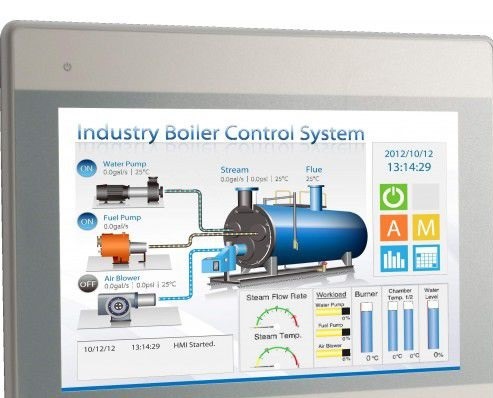

Uses advanced sensors and control systems for reliable, automatic operation. Includes options for global WiFi and remote control.

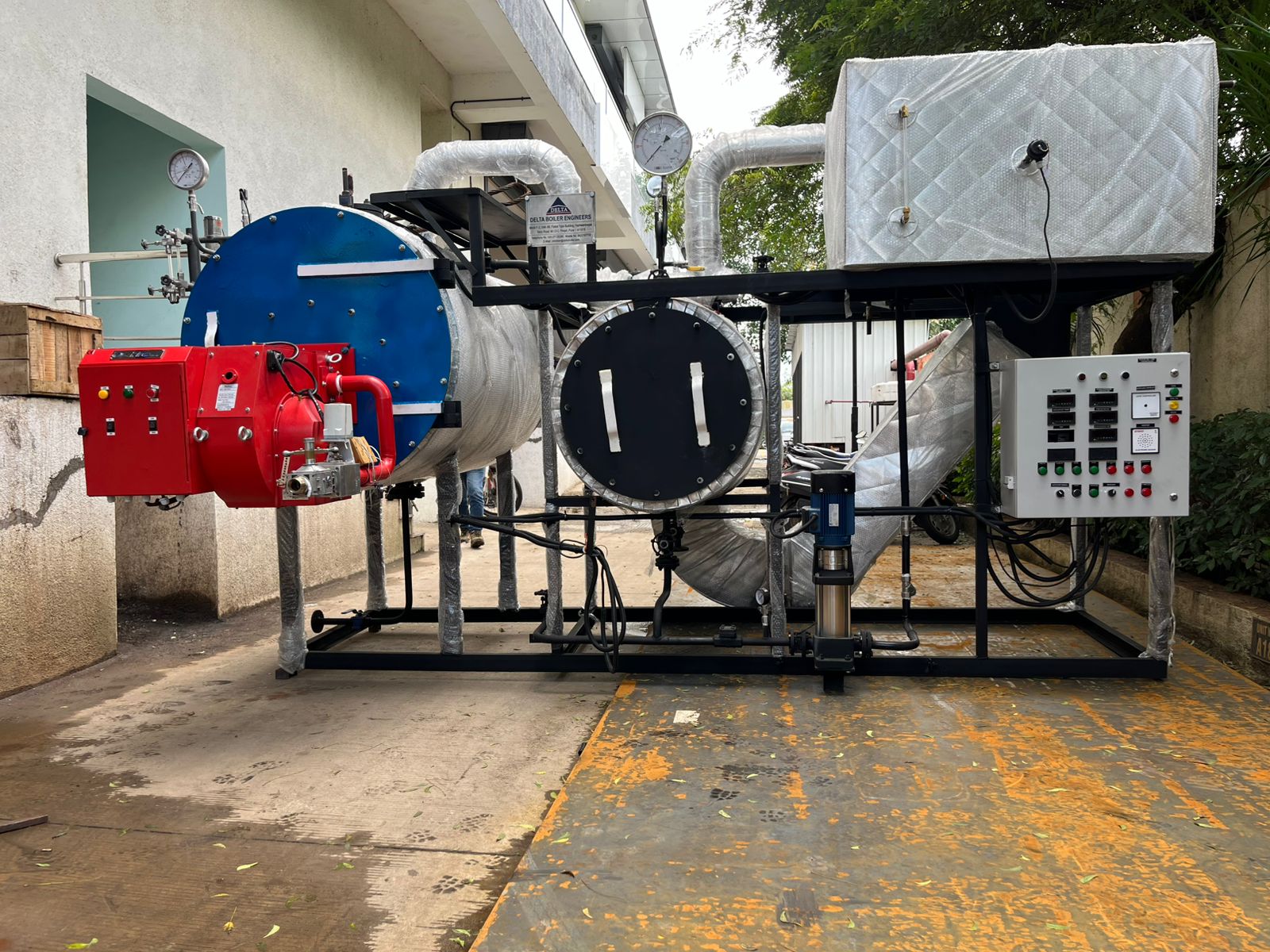

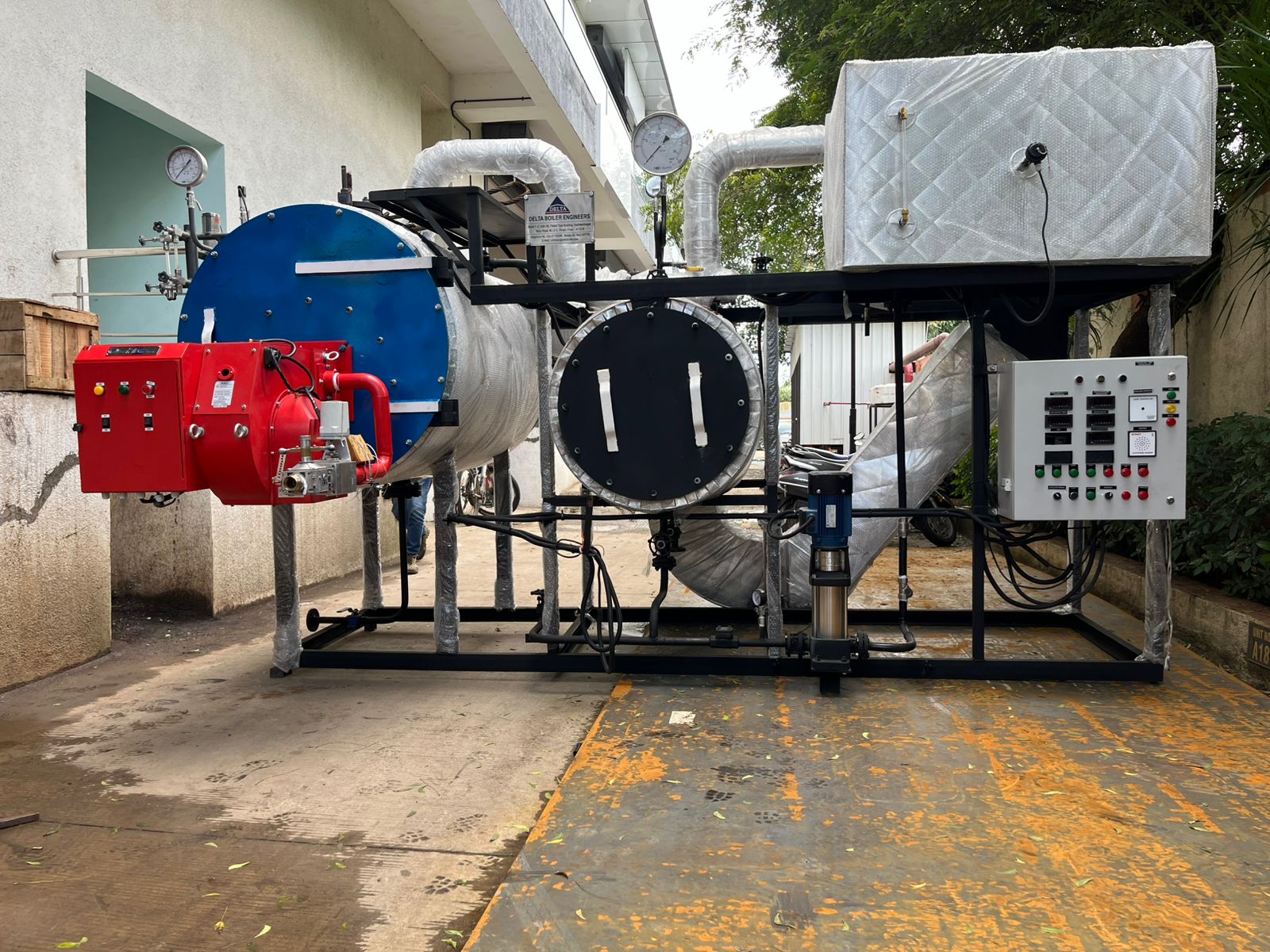

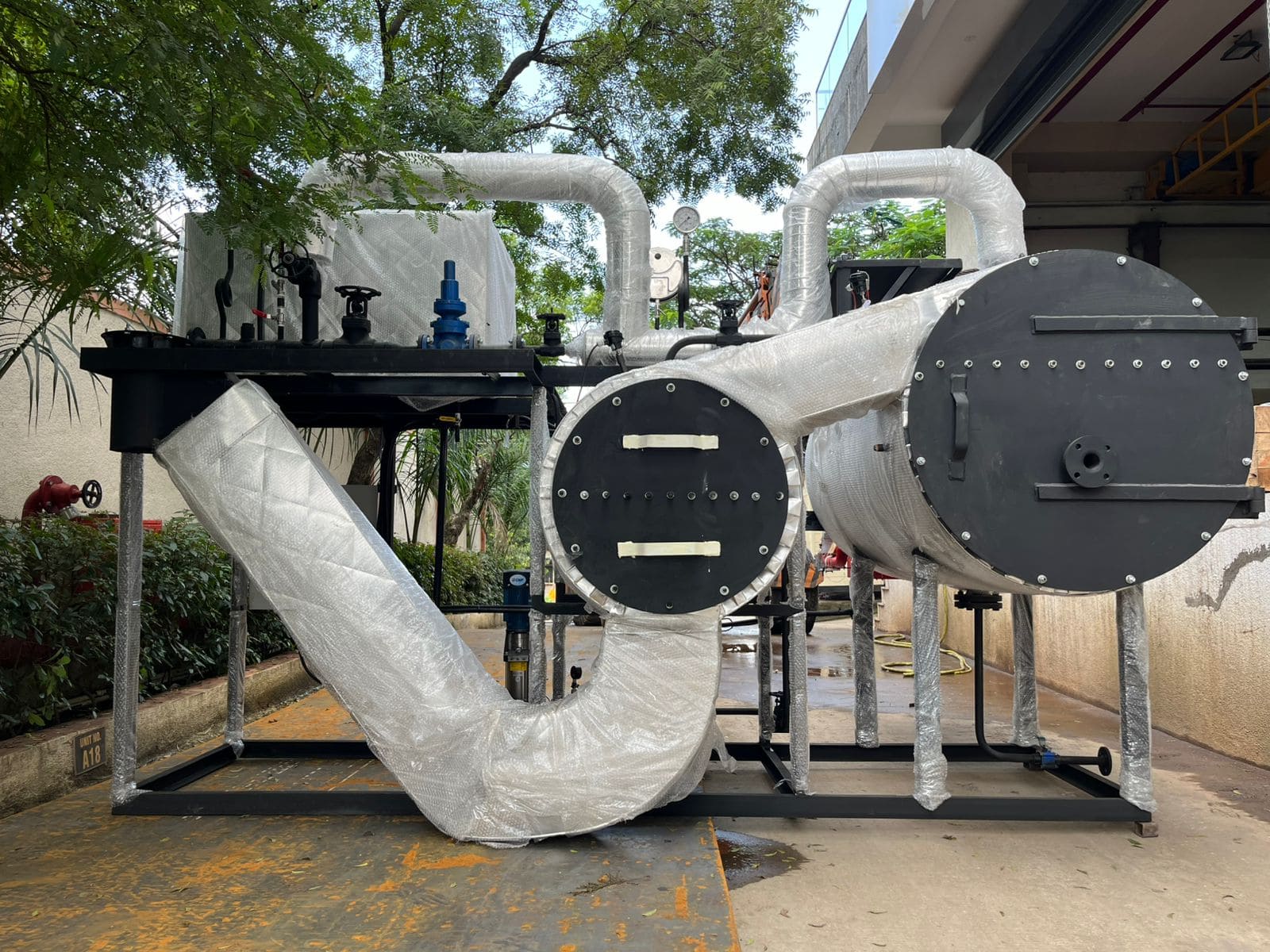

Small-scale industrial boilers with capacities ranging from 300 to 1000 kg/hr. are designed to efficiently meet the steam and hot water needs of start up industries and expansion units. Uniqueness of the boiler is that they fall under SIB(small scale industrial boiler category) of IBR so no statuary IBR licensed operator is req for the operation(pls check again with lastest amendent by IBR department of government of India.) Operating at around 7 kg/cm² pressure they can be fired using multiple fuel types like diesel, furnace oil, natural gas, and LPG. These boilers often feature a three-pass design, enhancing efficiency and durability, with thermal efficiency up to 89%.Commonly used in industries such as chemical ,pharmaceuticals ,food processing and laundry they comply with Indian Boiler Regulation (IBR) norms, ensuring safety and reliability.

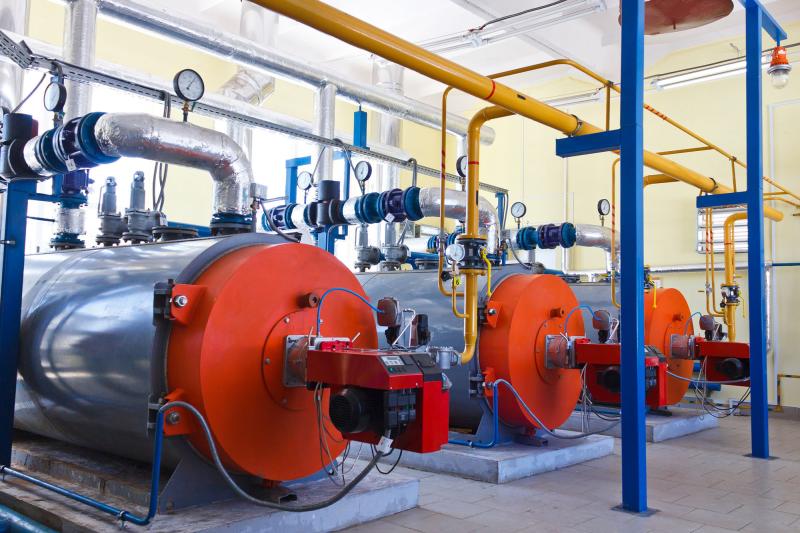

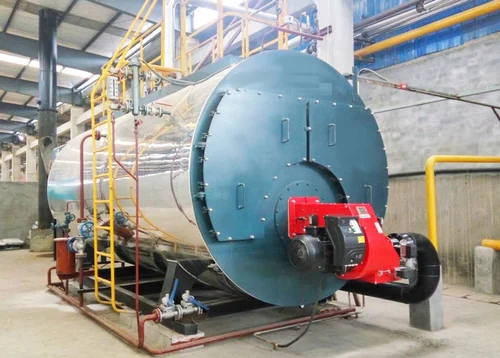

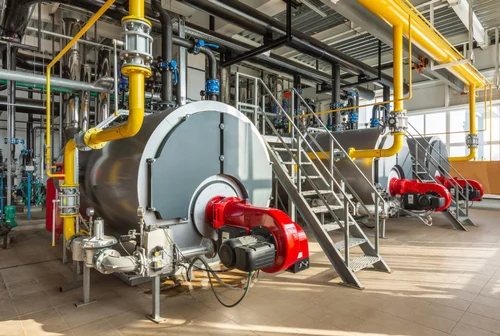

These are industrial heavy duty steam boiler which essential run on fuel like natural gas, furnace oil, light diesel oil etc. . They are preferred over biomass/wood fire boilers due to their super compact design, auto fuel feeding , minimum to no fuel storage large spaces required, lesser carbon emissions than solid fuels, etc. They are available in operating steam temperature 200 degree Celsius and operating pressure from 10.5kg/cm2 to 17.5kg/cm2. They are ideal for chemical plant, laundry plant, corrugation box units, dairy, agro units, food units, textile units etc
